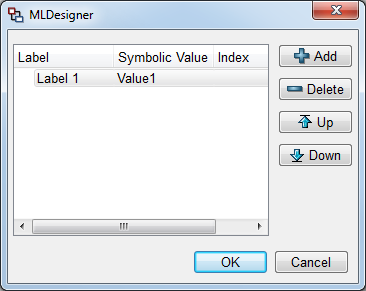

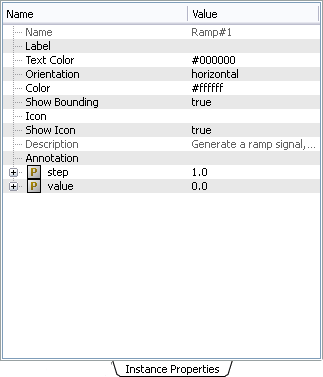

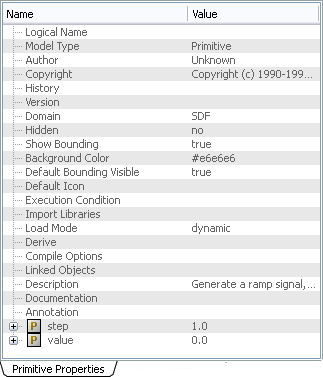

To edit the properties select the field you wish to edit by clicking the relevant item in the Value column. The text in non-editable fields is gray. The data input method differs depending on the type of value. Certain types of values have a button which opens a dialog where the value can be defined. Other types of properties such as parameters, ports, memories, and events are expandable cells where a property must be selected from a drop-down menu. For parameters of model instances, only the value of the parameter can be set. The Property Editor is also used to link model instance properties like parameters, memories, events and resources to other model elements.
The simulation properties window is only visible when MLDesigner is in simulation mode. To see the simulation properties window click the Switch to Simulation Mode icon on the toolbar. All system parameters defined with external scope in the System Properties, are visible in the Simulation Properties window. These parameters can be changed without modifying the system.
